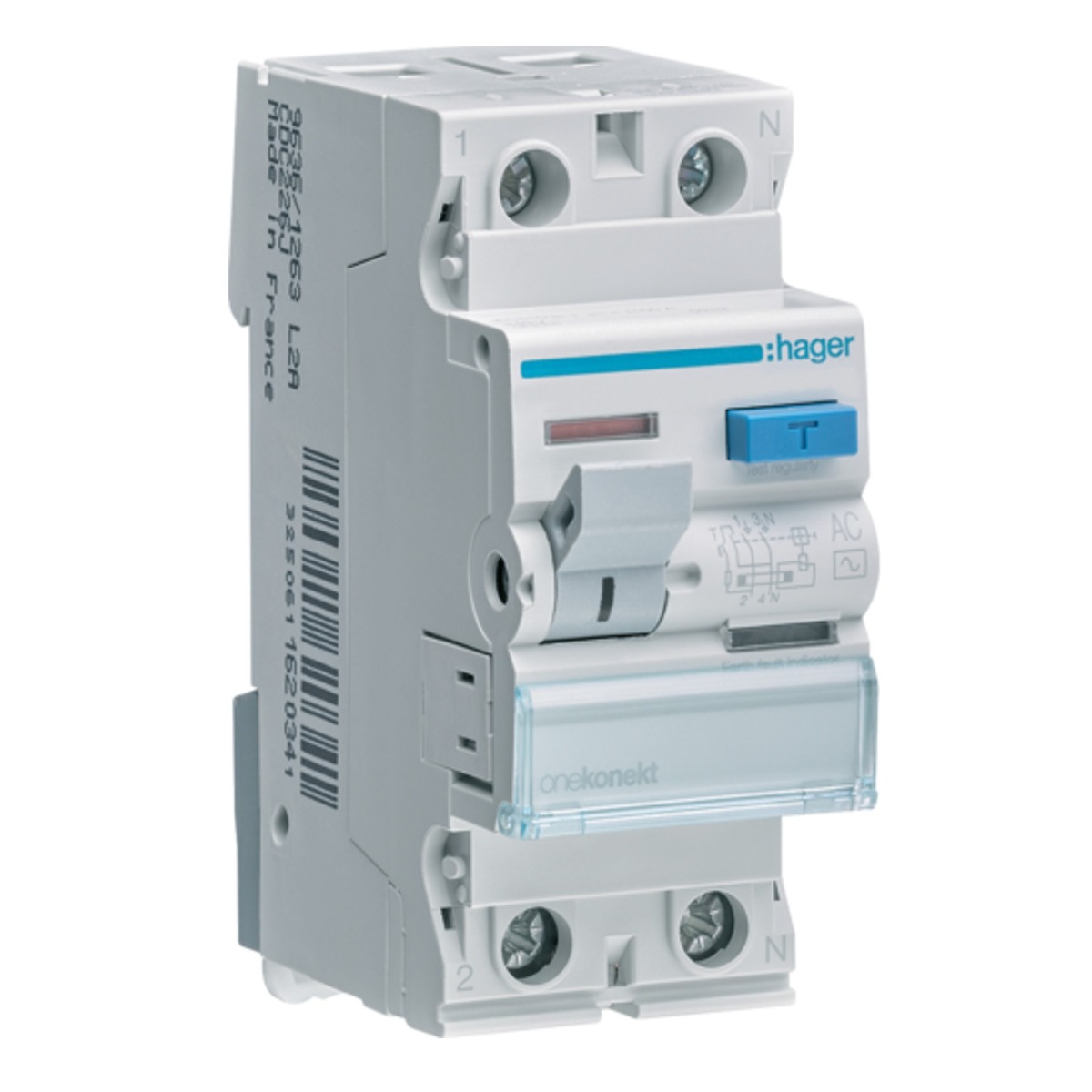

These compact devices provide RCD earth leakage protection (protect against electrical shocks by direct or indirect contacts).They open automatically in the event of an earth fault between phase and earth and/or neutral and earth.

• With fault indicator
• Withstand not tripping on 8-20 μs wave:
• Breaking and opening capacity: 1500 A
• Rated conditional short-circuit current Inc according to EN 61008-1
• Power loss per pole at In: 1,23 W
• No Short-time delayed tripping
• Electric endurance in number of cycles: 2000
• Number of mechanical operations: 4000
• Standard text: IEC 61008-1
