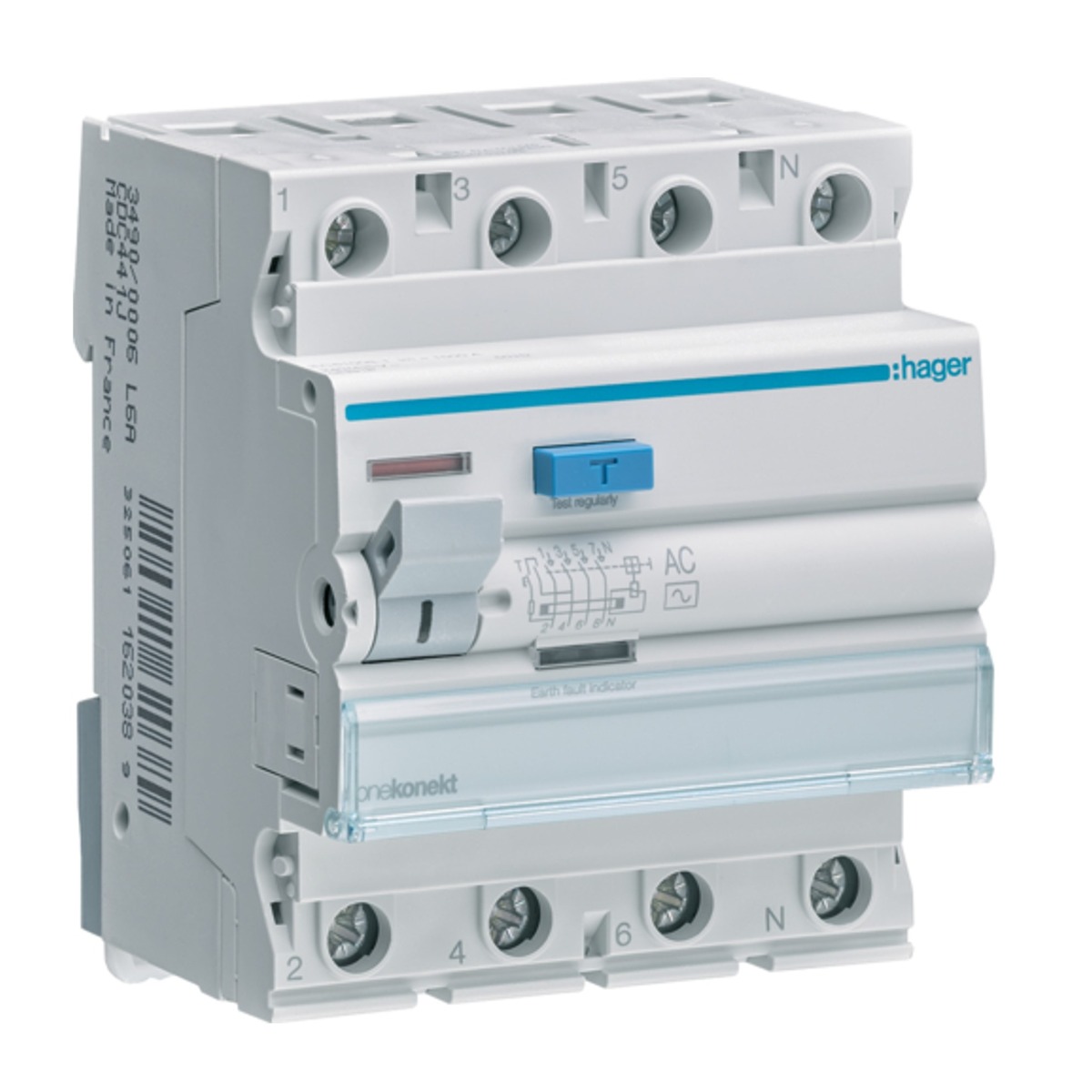

HAGER 40A 4 Pole 100MA RCCB/ELCB CEC441J

AED128.50

SKU

: HAGELC1124

Model

: CEC441J

Categories

: Modular Distribution Board components

UOM

: pcs

HAGER 40A 4 Pole 100MA RCCB/ELCB CEC441J
Email To the Friend

Enquiry Details

More Information
Brand Hager
Breaking and Opening Capacity 1500 A
Number of Poles 4
Short-Time Delayed Tripping No
Supply Voltage AC
Minimum Operating Temperature -25 Deg. C
Ingress Protection 20 IP
Maximum Operating Temperature 70 Deg. C
Operating Voltage 230 V
Mounting Type DIN Rail
Terminal Type Screw
Connectivity Bottom
UOM pcs
Model CEC441J

These compact devices provide RCD earth leakage protection (protect against electrical shocks by direct or indirect contacts).They open automatically in the event of an earth fault between phase and earth and/or neutral and earth.

  • With fault indicator
  • Withstand not tripping on 8-20 μs wave:
  • Breaking and opening capacity: 1500 A
  • Rated conditional short-circuit current Inc according to EN 61008-1
  • Power loss per pole at In: 3.6 W
  • No Short-time delayed tripping
  • Electric endurance in number of cycles: 2000
  • Number of mechanical operations: 4000
  • Standard text: IEC 61008-1
